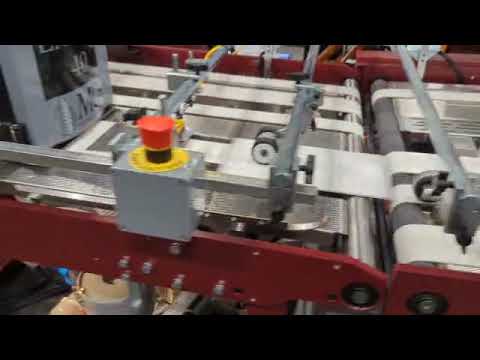

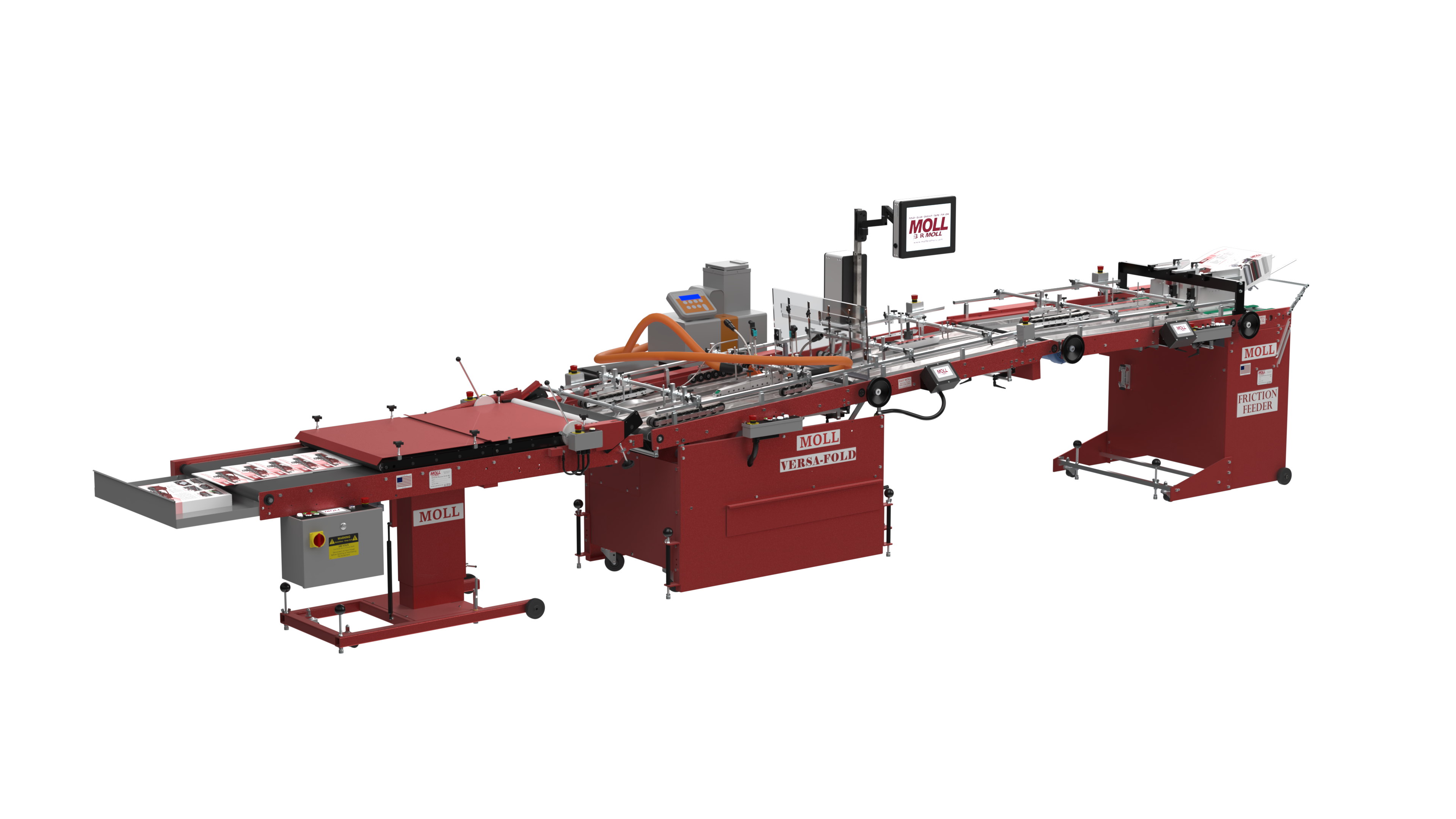

Versa Mailer

Versa Mailing System has been designed to maximize your production with optional inline tipping, score, perforating, gluing for self-mailing and inkjetting all in one pass. Half-folds, tri-fold and gate-folded pieces faster than ever. Quick change overs and continuous feeding the volume is endless.

Features

Module design to mix and match
Friction fed (continuous)
Belt drive
Vacuum infeed belts
Etched railing for quick change overs
Ability to bump-n-turn a sheet
Optional tipping, Scoring, perforating, ink-jetting
Self-Mailer half/tri/gate-fold quick change overs

Industries/Consumers served

Food, beverage, cosmetic, POP, pharmaceutical, sports packaging, consumer packaging, home and office packaging, industrial packaging, commercial print, mailing, sample packets, and more!

Specifications

	Imperial	Metric
Material	Cover Stock Paper, Heavy Board	Cover Stock Paper, Heavy Board
Paper weight	70lb Cover to 28pt Stocks	140–500 g/m²
Minimum product size (WxL)	2 x 4 inches	50 x 102 mm
Maximum product size (WxL)	26×20“ or 33×20” or 40×20	762x508mm or 914x508mm or 1016×508 mm
Maximum linear speed	425ft/min	130m/min
Power connection	220V, 3PH, 60AMP, 60 HZ	400V, 3PH, 60AMP, 50 HZ
Compressed air connection	90 PSI	6 Bars
