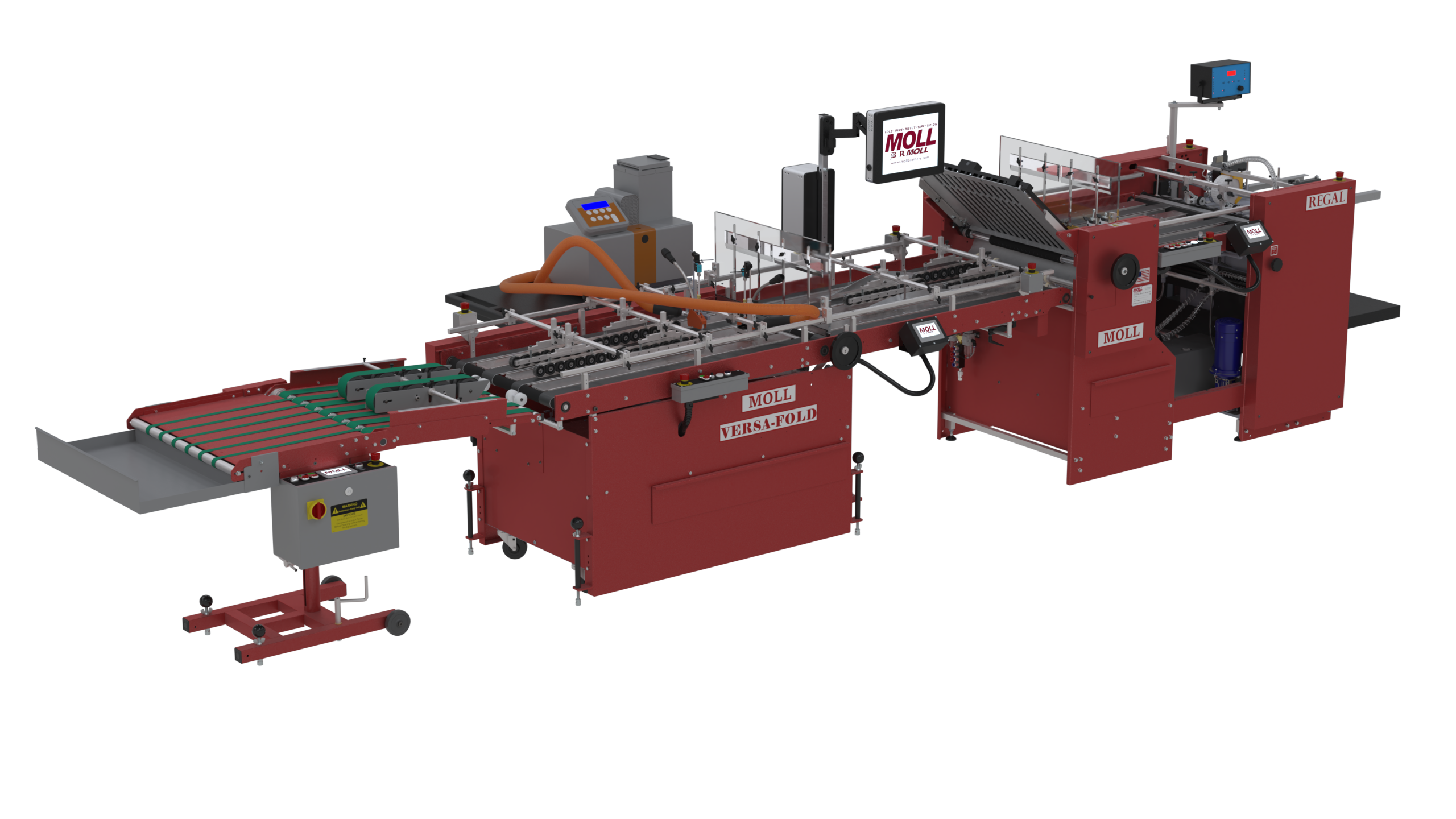

Regal System

For nearly 20 years this Moll folder gluer has been the most popular piece of folding equipment Moll has to offer. Printers, Trade Finishers, and Binderies alike find this system fulfills all the needs of the ever-changing demands of your customer and folding formats. The long in-feed and belt section allows forming, folding, taping, and inserting.

The Regal System’s ability to handle large-format, heavier weight stocks and its quick change-over time makes it flexible enough to handle a wide varierty of jobs. It can be configured to produce a range of finished pieces, including pocket folders, envelopes, CD/record sleeves, digipacks, and room key card holders. The Regal Folder/Gluer System handles 30” wide formats. Designed as an all belt-driven in-line system, with standard segemented glue rollers, tipper fold plate, optional 2nd fold plate and anti-marking attributes for paper weights up to 28pt+.

Economical footprint
Pile fed – anti marking
Quick set up
Belt drive
Etched railing for quick change overs
Built in sheet spacer, batch counter, DC controls and more
Equipped with two and three inch wide drive belts on top of removable filler pans
Dual pump system
Ability to bump-n-turn a sheet
Easy attachments for Card Affixing, Labelers / Ink jetting / RFID / Velcro
Optional Hot or Cold Glue Systems

Industries/Consumers served

POP, pharmaceutical, accounting/financial institutions, commercial print, and more!

Specifications

	Imperial	Metric
Material	Cover Stock Paper, Heavy Board	Cover Stock Paper, Heavy Board
Paper weight	70lb Cover to 28pt Stocks	140 –600 g/m²
Minimum product size (WxL)	5.5 x 5.5 inches	139 x 139 mm
Maximum product size (WxL)	30 x 30 inches	762 x 762 mm
Maximum linear speed	425ft/min	130m/min
Power connection	220V, 3PH, 30AMP, 60 HZ	400V, 3PH, 30AMP, 50 HZ
Compressed air connection	90 PSI	6 Bar
