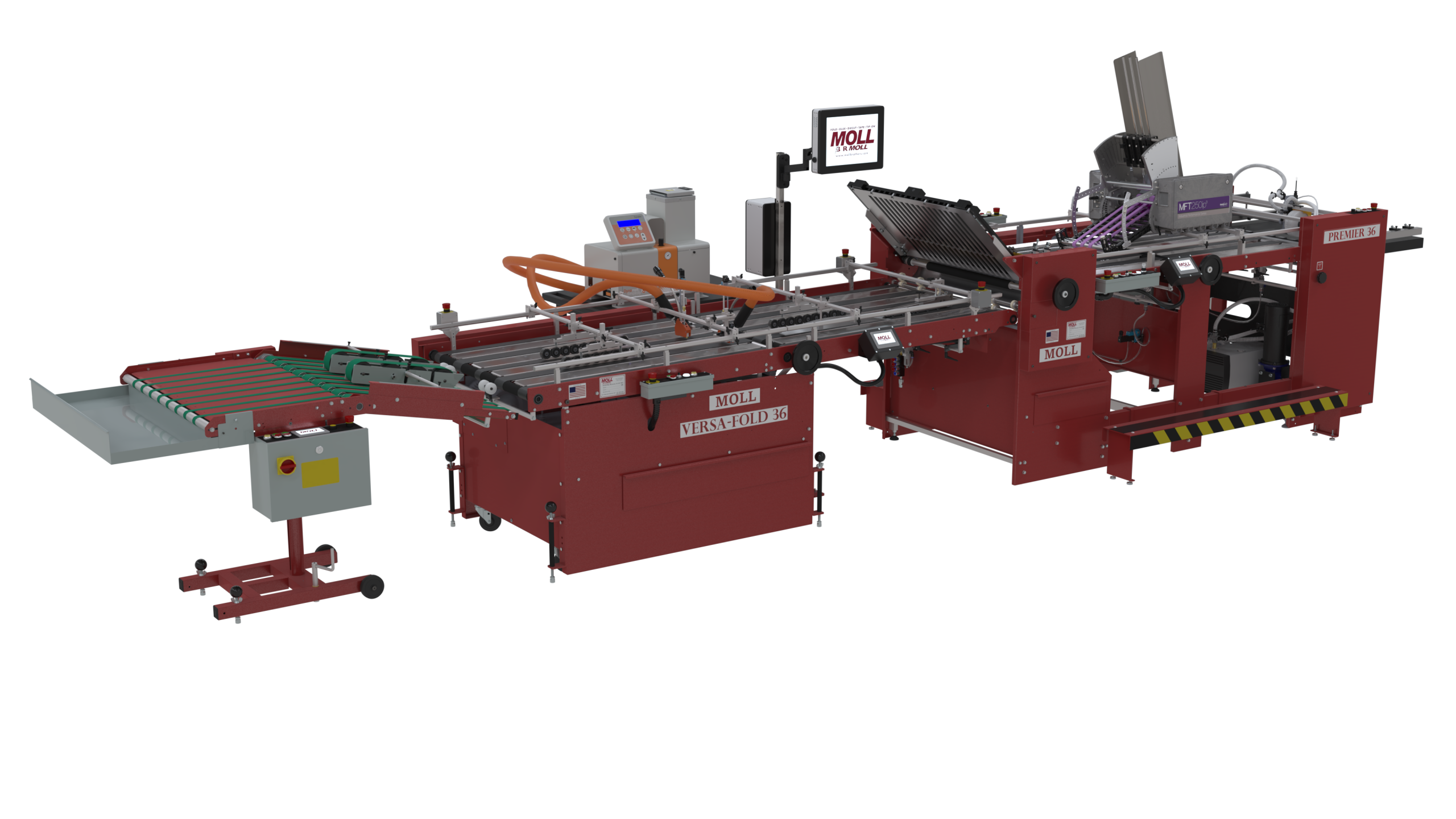

Premier 36 System

The Premier 36 System was developed by Moll in response to larger format printing and new media requirements in the folder gluer industry. This Premier folder/gluer system has the capability of multiple inserts, pharmaceuticals information and credit card requirements. The long in-feed and belt section allows forming, taping, and inserting. The Premier 36 System’s ability to handle large format, heavier weight stocks and its quick change over time makes it flexible to handle a wide variety of jobs.

The Premier 36 System handles 36” wide formats. Designed as an all belt driven in-line system, it features a built-in sheet spacer and batch counter. A stainless-steel buckle fold plate eliminates marking and static build-up during folding, and the tipper plate features anti-marking rollers. There is also an optional bottom fold plate.

36” wide format
Buckle Fold Plate with removable ribs and an all stainless steel back plate to eliminate marking and static build-up
Over six feet of travel which includes two separate stages of belt drives with both two and three inch wide drive belts on top of removable filler pans
Multiple Tipper Fold Plate with dual anti-marking rollers which allow for heavier stocks to be folded
Built in sheet spacer, batch counter, DC controls and more
Equipped with two and three inch wide drive belts on top of removable filler pans
All Belt drive
Optional bottom fold plate
Dual pump system

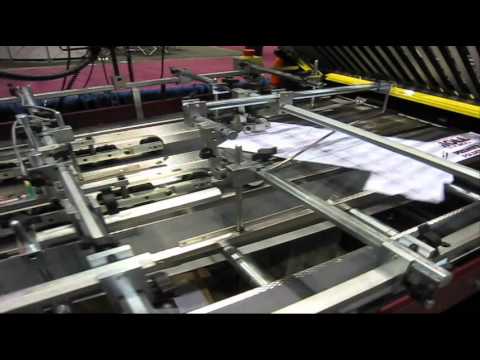

Ability to bump-n-turn a sheet

Industries/Consumers served

POP, pharmaceuticalss, accounting/financial institutions, commercial print, and more!

Specifications

	Imperial	Metric
Material	Cover Stock Paper, Heavy Board	Cover Stock Paper, Heavy Board
Paper weight	70lb Cover to 28pt Stocks	140–500 g/m²
Minimum product size (WxL)	5.5 x 5.5 inches	139 x 139 mm
Maximum product size (WxL)	36 x 36 inches	920 x 920 mm
Maximum linear speed	425ft/min	130m/min
Power connection	220V, 3PH, 30AMP, 60 HZ	400V, 3PH, 30AMP, 50 HZ
Compressed air connection	90 PSI	6 Bar
