Pile PT System

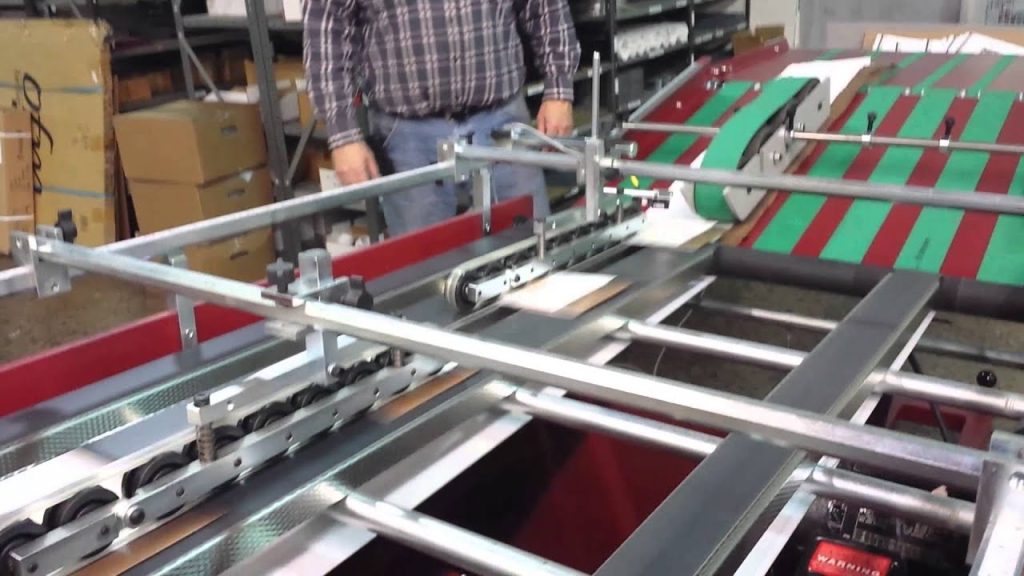

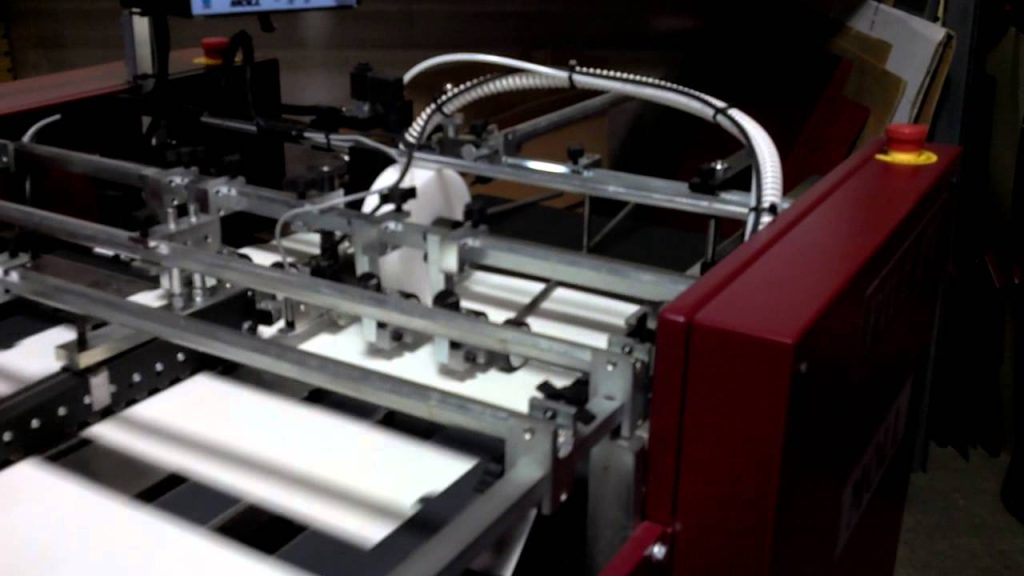

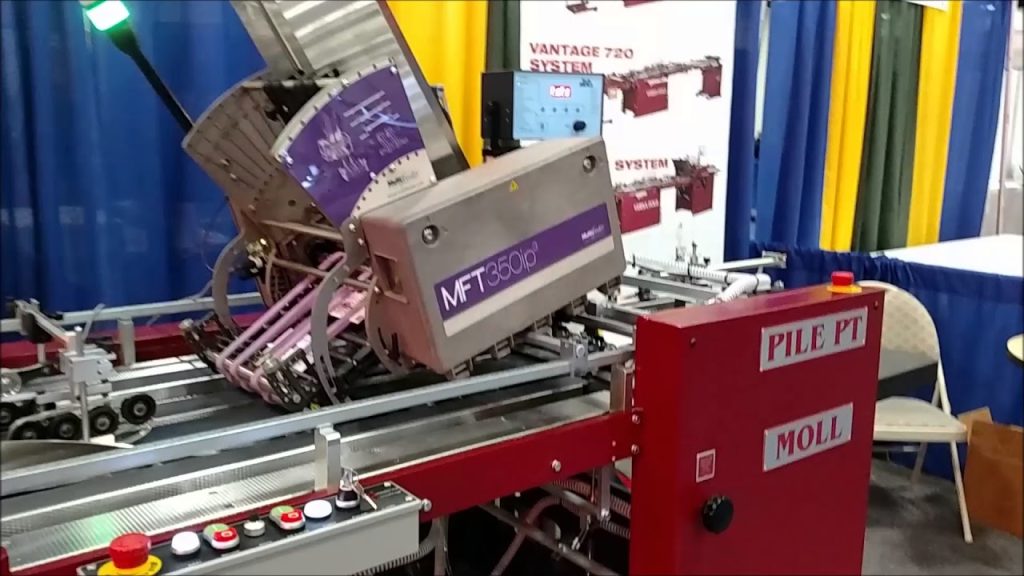

The Moll Pile PT paper folder is similar to our Bottom Friction Feeder. This Folder Gluer machine is a condensed folding and taping system that feeds from a pile feeder with a non-marking air wheel to ensure your coated stocks don’t scratch or mark. Through the 51 inch long in-feed section the machine allows you to perform such things as tab forming, folding, gluing, taping, or inserting. Other Moll module attachments can be added at anytime to length and perform more functions at anytime in the future! (Featured here with a Versa-Fold section).

Economical footprint
Pile fed – anti marking
Quick set up
Belt drive
Etched railing for quick change overs
Built in sheet spacer, batch counter, DC controls and more
Equipped with two and three inch wide drive belts on top of removable filler pans
Dual pump system
Ability to bump-n-turn a sheet
Easy attachments for Card Affixing, Labelers / Ink jetting / RFID / Velcro

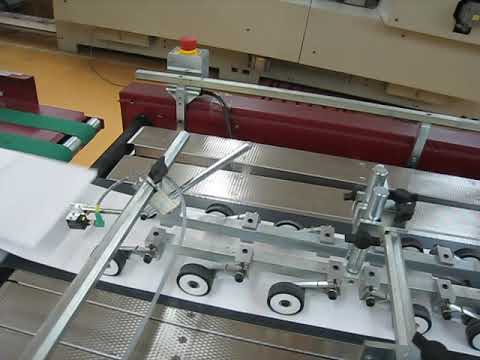

Optional Hot or Cold Glue Systems

Industries/Consumers served

POP, pharmaceuticals, accounting/financial institutions, commercial print, and more!

Specifications

	Imperial	Metric
Material	Cover Stock Paper, Heavy Board	Cover Stock Paper, Heavy Board
Paper weight	70lb Cover to 28pt Stocks	140–500 g/m²
Minimum product size (WxL)	5.5 x 5.5 inches	139 x 139 mm
Maximum product size (WxL)	30 x 30 inches	762 x 762 mm
Maximum linear speed	425ft/min	130m/min
Power connection	220V, 3PH, 30AMP, 60 HZ	400V, 3PH, 30AMP, 50 HZ
Compressed air connection	90 PSI	6 Bar
