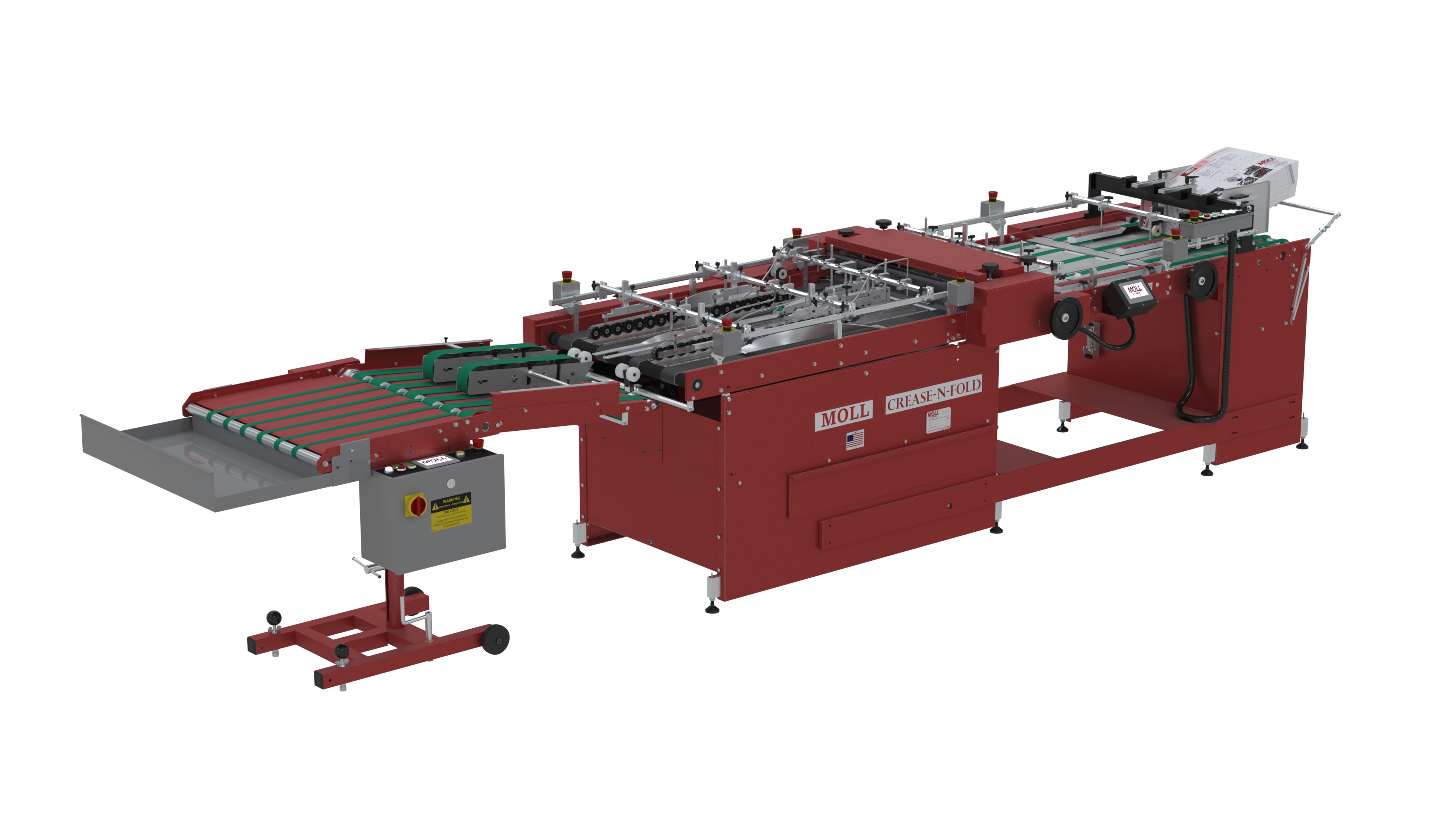

Crease-N-Fold
“Die press quality scoring, perforating and folding in one fast operation with it's own continous feeder it is perfect for self-mailers, post cards and more...”
Some folding machines can score with limited quality and some can’t. Comes Standard with anti-shaft deflection tooling allow your thicker sheets to have the perfect score from start to finish.
Features
- 30” or 36” wide format
- Dual shaft system so you can hit the same crease – hit the crease in the first shaft and then harder in the second shaft to gradually crease digitally printed stocks
- Dual register – keeps sheet in side guide on long narrow sheets
- Standard anti-shaft deflection tooling, thicker sheets get the perfect score from start to finish.
Specifications
| Imperial | Metric | |
| Material | Cover Stock Paper, Heavy Board | Cover Stock Paper, Heavy Board |
| Paper weight | 70lb Cover to 28pt Stocks | 140–500 g/m² |
| Minimum product size (WxL) | 5.5 x 5.5 inches” | 139 x 139 mm |
| Maximum product size (WxL) | 30 x 30 or 36 x 36 inches | 720 x 720 or 920 x 920 mm |
| Maximum linear speed | 425ft/min | 130m/min |
| Power connection | 220V, 3PH, 30AMP, 60 HZ | 400V, 3PH, 30AMP, 50 HZ |
| Compressed air connection | 90 PSI | 6 Bars |
