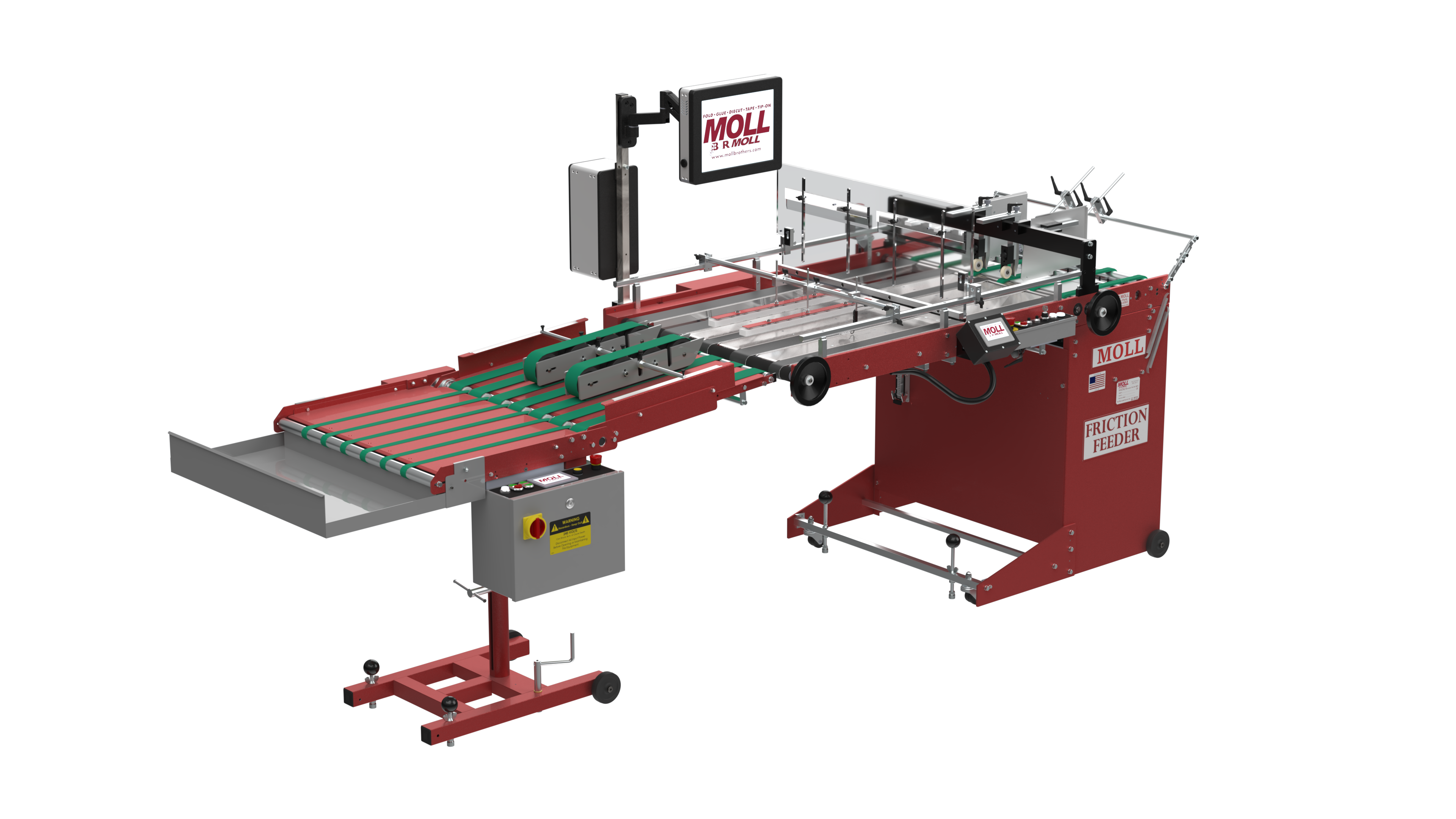

Compact

The Moll Compact is one of the most condensed folding systems in the market today. Due to its design based upon the Vantage 720 System, this friction fed folder/gluer system offers versatility for your small formats. Ideal for folding pillow packs, straight-line cartons, table tents, along with room key card holders and coffee cup sleeves. With the appropriate attachments you can apply double sided tape and fold pocket of a pocket folder. Its economical footprint makes it ideal for space saving needs. You can always add a Versafold in the future in order to produce larger work and auto-lock cartons.

Features

Folder Gluer for Package Boxes and an assortment of Prestation Pieces
Economical footprint
Friction fed
Belt drive
Vacuum infeed belts for lighter stocks
Etched railing for quick change overs
Easily expandable
Optional Hot and Cold Glue Systems

Industries/Consumers served

Food/beverage, games, greeting cards, business cards, health care, POP, pharmaceutical, accounting/financial institutions, commercial print, and more!

Specifications

	Imperial	Metric
Material	Cover Stock Paper, Heavy Board	Cover Stock Paper, Heavy Board
Paper weight	70lb Cover to 28pt Stocks	140–500 g/m²
Minimum product size (WxL)	5.5 x 5.5 inches	139 x 139 mm
Maximum product size (WxL)	33 x 25 inches	838 x 635 mm
Maximum linear speed	425ft/min	130m/min
Power connection	220V, 3PH, 30AMP, 60 HZ	400V, 3PH, 30AMP, 50 HZ
Compressed air connection	90 PSI	6 Bar
